Turbidity sensor
From emboxit
Mouser
- Mouser paage GE M&C / Thermometrics Turbidity Sensors
- GE M&C / Thermometrics Turbidity Sensors, at MOUSER
GE 165D6042P003
- 165D6042P003 is an LED-PHOTO-TRANSISTOR turbidity sensor and NTC temperature sensor
- Available at Mouser <ref> *All Products > Sensors > Optical Sensors > Photoelectric Sensors > GE M&C / NovaSensor 165D6042P003, price 4,37 € </ref> at €4.37
- From datasheet: <ref> 165D6042P003 datasheet (from Mouser)</ref>

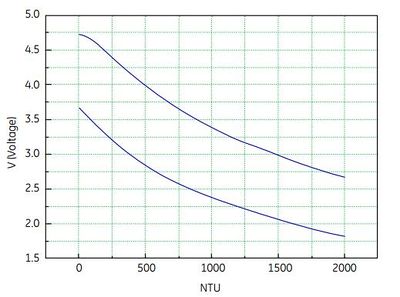

The 165D6042P003 module measures the turbidity (amount of suspended particles) of the wash water in washing machines and dishwashers. An optical sensor for washing machines is a measuring product for a turbid water density or an extraneous matter concentration using the refraction of wavelength between photo transistor and diode. By using an optical transistor and optical diodes, an optical washing machine sensor measures the amount of light coming from the source of the light to the light receiver, in order to calculate water turbidity.
GE TSW-10
- TSW-10 is is an LED-PHOTO-TRANSISTOR turbidity sensor, without temperature sensing
- Available at Mouser <ref> All Products > Sensors > Optical Sensors > Photoelectric Sensors > GE M&C / NovaSensor TSW-10, price 3,74 € </ref>, at €3,74
165D6042P003 anatomy

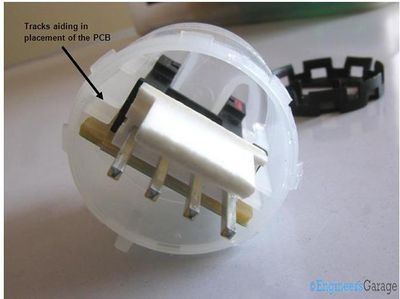

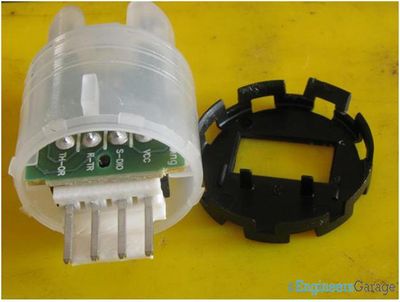

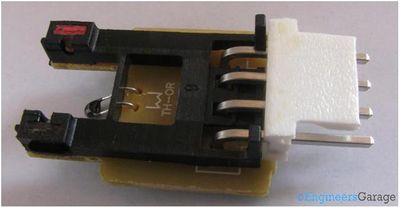

- Engineers garage blog article Insight - Learn the Working of a Turbidity Sensor, <ref> Learn the Working of a Turbidity Sensor, EngineersGarage]</ref> has detailed photos of 165D6042P003 internals
- The conclusions are
- It is relatively easy to design/develop a similar sensor from scratch
- Enclosure can be 3D printed
- CUT on PCB CNC machine Use glued transparent windows
- GE turbidity sensors are low cost and can be easily purchased from Mouser
- They are developed for industrial use, and their sensitivity is not as low as needed for environmental measurements
- Developing a new sensor with needed specification is feasible
