ST-LINK

STM ST-LINK first version

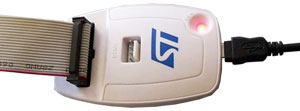

STM now released version2

• STM product page

• Digikey here OUT of STOCK

• STM gives availability to distridutors here

• -----------> BUY AT Mouser

• Related software st-link utility

ST-LINK with LPC1xxxx

• LPCXpresso Forum lpc13xx/lpc17xx with ST-LINK

O.k., basically I got it working.
This morning I was able to flash and debug a sample application on a lpcxpresso 1769 board with a STLink in SWD mode.
Singlestepping,  breakpoints and viewing of variables worked.
I just had to define a clocking frequency, the (Eclipse-based) CooCox IDE did it not for me.
Next step is to try the same in JTAG made, and under Linux and with Crossworks.

Well, not to my total satisfaction ...
It doesn't work in JTAG mode (only SWD), which is not tragical at all.
With Crossworks, it does not work at all, complaining about a lost connection to target.
I asked for help, but don't hold too much hope.
The ST-Link adaptor is supported by Crossworks only under Windows - my second choice for a host OS.

• Using STM32VL discovery to Program/Debug NXP LPC series

• Nikos: In my tests with LPC1114

can not program the Flash with ST-LINK

But if already programmed with LPC-Link, then debugging works
