N-U35

n-mote LPC11U35 MCU board-on-board (bb) module

---

---

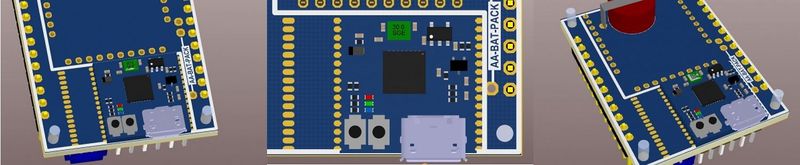

Background

mbed-HDK design was initially used as part of the n-bed board to provide the mbed interface.
It performed very well, and it was decided to create a standalone mbed-HDK board in very small size
to be used as an SMT module.
Except the mbed-HDK usage it can control small and low power projects.
The drag and drop programming capability without any prior programming of the chip
and the mbed environment provide really rapid prototyping

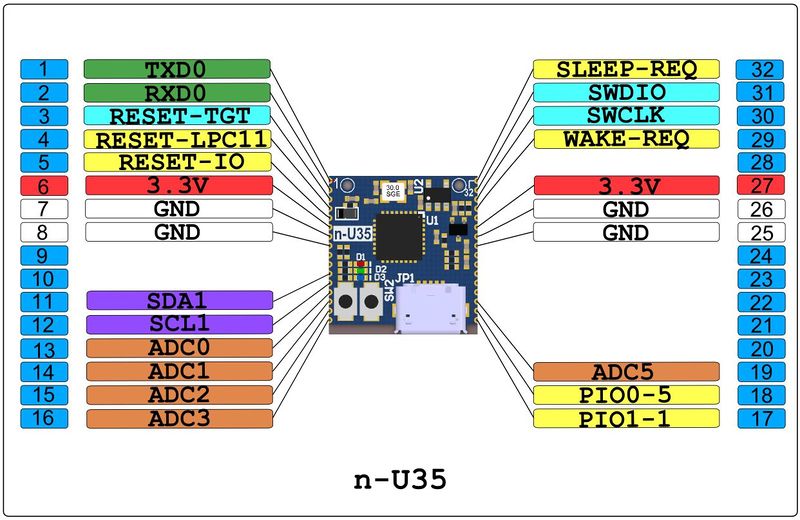

Features

• Small form factor 16x16mm SMT board to board module
• LPC11U35 ARM Cortex M0 CPU
• Appears as USB disk without any programming
• Native Click & Drag programming via USB using [.bin] binary file
• Any Compiler
• Using the mbed-HDK image, provides mbed-enabled capabilities to another CPU

• based on mbed-HDK reference design

• Can be programmed using mbed environment as a standalone CPU
• Can be used as USB to UART,SPI,I2C bridge using a custom mbed program
• Can be used as USB to UART bridge using mbed-HDK
• Low power

Stand alone operation

• Can be used as generic CPU module,
• A tiny ARM Cortex M0 CPU module to be used as SMD part,
• drag & drop USB programmable,
• using mbed or any other compiler

mbed-HDK

• Hardware design based on mbed-HDK reference design
• CMSIS-DAP for seamless debugging Target-CPU (tested on LPC1768) from KEIL IAR and other toolchains acting as USB to JTAG interface
• Provides mbed-enabled capability for another processor via serial JTAG. Tested with LPC1768
• USB Virtual UART Serial Port for debugging or other purposes
• mbed Drag & Drop programming for the Target CPU (tested on LPC1768)
• Bootloader for BLE mbug (nRF51822)
• This is how to flash mbed-HDK: LPC11U35 USB flash programming It can be used as USB to UART interface (115200).

Usage

WSN

• can Control:

• ZIGBEE module via UART

• XBEE
• XBEE pro

• RF module via SPI

• Libelium LoRa
• CC1101
• AT86RF231

more...

Links

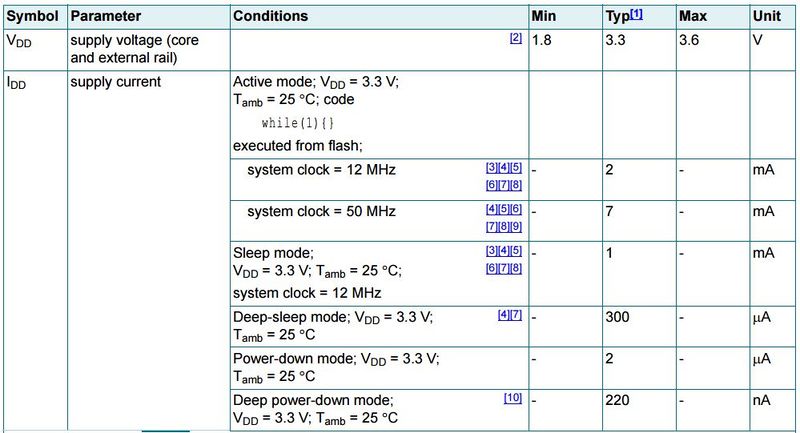

• datasheet
• Embedded artists LPC11U35 mbed board
