MAG3110
From emboxit
- Freescale MAG3110 Three-Axis, Digital Magnetometer product page
- Freescale MAG3110 Three-Axis, Digital Magnetometer datasheet
- Board schematics in this pdf
- 1.95V to 3.6V Supply Voltage (VDD)
- 1.62V to VDD IO Voltage (VDDIO)
- Ultra Small 2 mm by 2 mm by 0.85 mm, 0.4 mm Pitch, 10 Pin Package

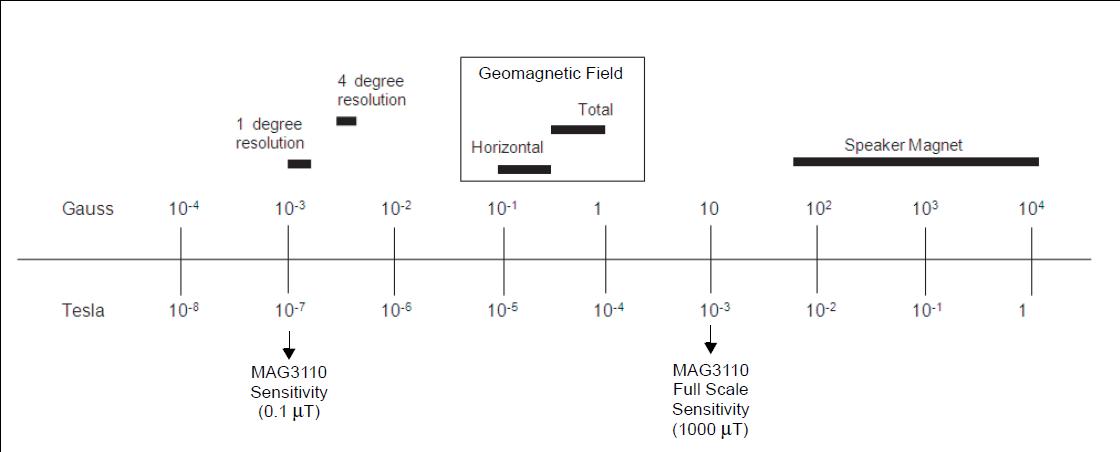

- Full Scale Range ±1000 μT
- Sensitivity of 0.10 μT
- Noise down to 0.25 μT rms
- Output Data Rates (ODR) up to 80 Hz
- I2C digital output interface (operates up to 400 kHz Fast Mode)
- 7-bit I2C address = 0x0E
- Sampled Low Power Mode

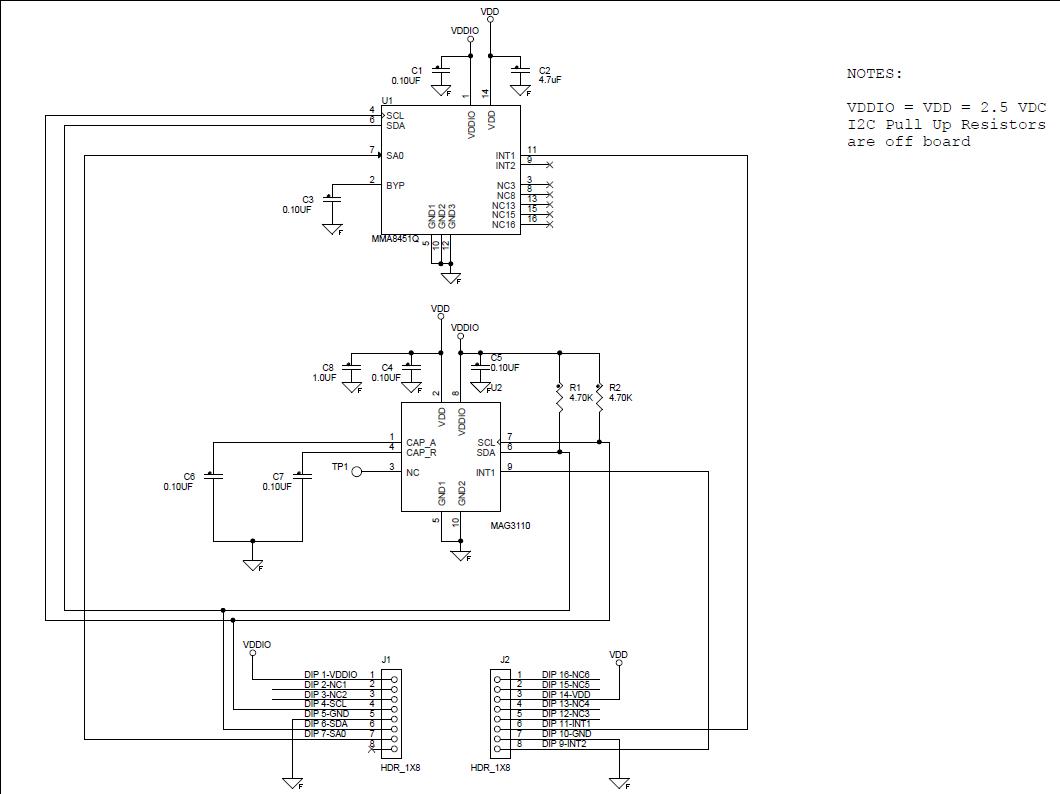

- Freescale board schematic:
