Sensor Assembly

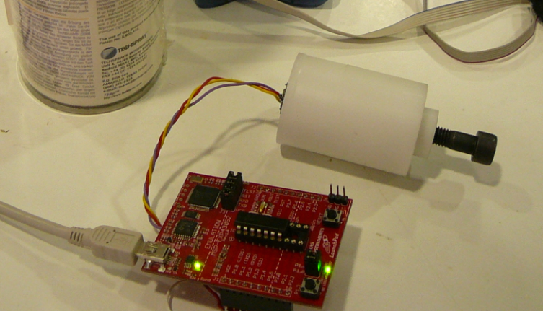

Green led (the right-one) is on, Spray-Metallic-Bottle is sensed
Magnetic sensor assembly with A1395 and 8mm dia x 5mm hight Neodymiun magnet.
Magnet distance from sensor is adjusted with the screw
With this assembly is measured the disturbance of the magnet magnetic field
- Gain is only x32 as it is not used any external Instrumentation amplifier
