Latest revision as of 16:51, 11 September 2015
Contents

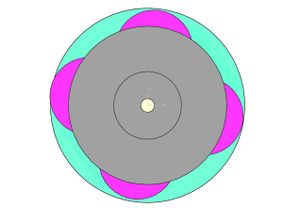

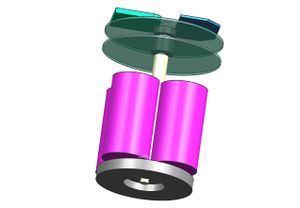

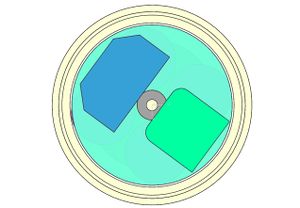

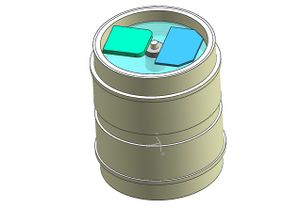

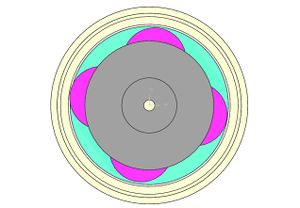

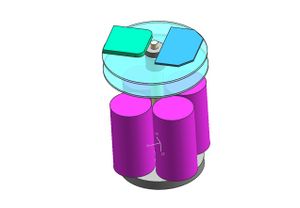

Mechanical
PCB

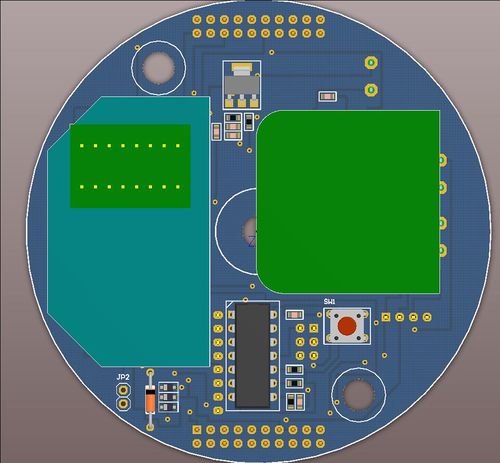

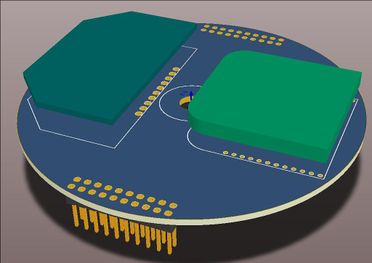

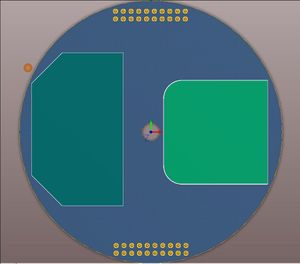

MAIN BOARD PREVIEW

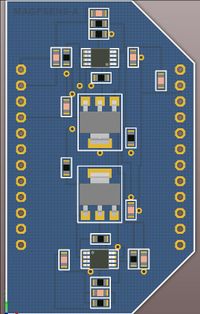

MAGNETIC SENSOR BOARDS PREVIEW
VERSION "V1" OF THE BOARDS
- 2011.10.24
- SHORT DESCRIPTION:

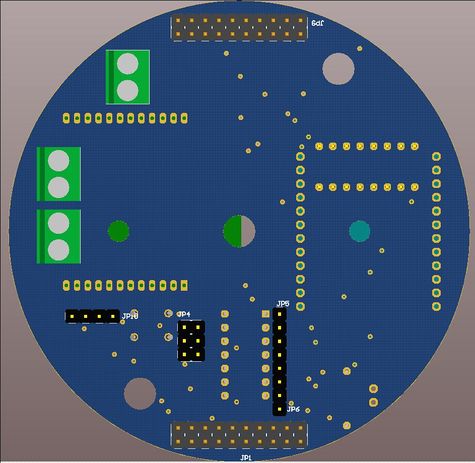

- BOARD MAGPNODE
- Circular board
- RF module and Magnetic sensor board are connected as piggy-back
- Connector to Battery pack
- Can be used in Node or in Repeater
- If used in Repeater:
- Connector JP3 provides connection to external supply
- A second MAGPNODE board can be plugged
- Provides more Sensor Inputs
- Temperature sensing from MSP430 internal Temperature sensor
- BOARD MAGPSENS-A
- With 2 magnetic Sensors SOT223

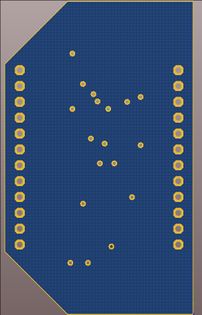

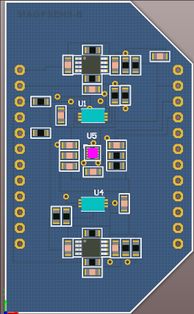

- BOARD MAGPSENS-B
- 2 Allegro Magnetic sensors
- Or 1 Freescale I2C 3-axis Magnetic Sensor
]
PHOTOVOLTAIC SOLAR CEL 8V 16SOIC
- CLAIRE CPC1832, buy at digikey price $1.75

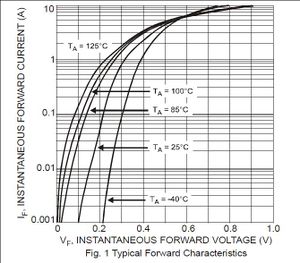

VERY LOW Vf DIODE
- DFLS130L-7 DIODE SCHOTTKY 30V 1A POWERDI123 buy at digikey price $0.55

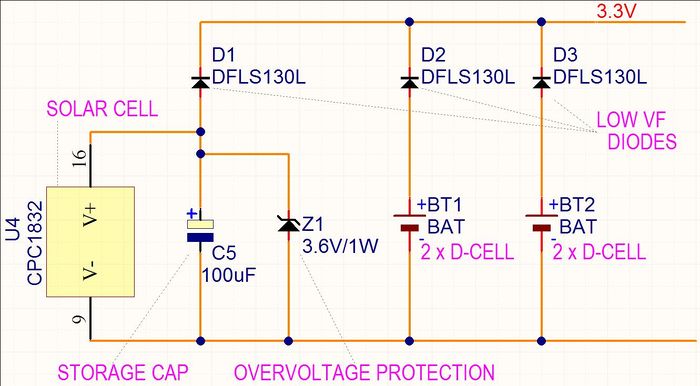

BATTERY CIRCUIT
