Documentation

Overview

  • Free and Open Source
  • Straight 'C', Non-Blocking Protothreads.
  • Cooja network simulator
  • MSPsim
  • GUI
  • Developers Forum
  • Over Radio Programming
  • Well documented
    • LPC2103
  • CC2430
  • VMWARE
  • Contiki wiki     goto Tutorials and Start-Guides
  • Contiki home

Platforms

Platforms dir.png




ESB


RFM TR1001 [Mouser 11EU BGA module]



Tmote-Sky

The Tmote Sky module is programmed through the onboard USB connector. A modified
version of the MSP430 Bootstrap Loader, msp430-bsl, programs the microcontroller’s flash.
Tmote Sky has a unique hardware circuit that prevents spurious resets. This hardware circuit
makes it necessary for a special sequence to be sent to the module in order to program it.
By invoking msp430-bsl, verify you have the patched BSL by looking for the “telos” keyword.
Version 1.39-telos-7 or later is required for Tmote Sky.
Seems very easy to create the mesh network on TmoteSky
  • Get Instant Contiki Here it is image for VMware (size 1.4GB)



ATmega128RFA1

ATmega128FA1

128K flash,
16K ram,
2K EEprom


Contiki has several AVR platforms, the latest being atmega128rfa1, which is pretty much a superset of the
Raven's 1284p+AT86RF230 combination and could use the Raven code with very little change.
  • Contiki Doxygen on platforms Generated on Mon Apr 11 14:23:59 2011 for Contiki 2.5
  • Get the Contiki source code source
Browse the contiki source code at http://contiki.git.sourceforge.net/git/gitweb.cgi?p=contiki/contiki;a=tree
Download the daily snapshot from http://www.sics.se/~adam/contiki/snapshots/?C=M;O=D
Clone the git directory with

 git clone git://contiki.git.sourceforge.net/gitroot/contiki/contiki




This application note provides a detailed hardware description of the individual function blocks of the sensor terminal board (STB).
The STB is used in conjunction with an Atmel  radio controller board (RCB) in order to provide various interfaces for evaluating and creating wireless sensor type applications.

The contiki git repo has a functioning 128rfa1 port. It basically is a clone of the raven port with SPI access replaced by internal access to the extended io space registers.

The biggest advantage of IP based Wireless Sensor Networks is their ability to be seamlessly connected to the Internet.
A device which passes data from the lowpan to ordinary network is called a "border router".
Such a device must support at least two network interfaces: 802.15.4 for the lowpan, and 802.3 or 802.11 for the uplink

Sparkfun ATmega128RFA1 board


  • ATmega128RFA1 board Sparkfun at $55 with Eagle files and active forum

FROM SPARKFUN PRODUCT BLOG

JCWoltz | June 15, 2011 at 7:00 PMComment Rating1
Not to take anything away from this board. But Synapse Wireless makes some firmware for the ATMega128RFA1 that run on this board and is intended for mesh networking.
They also make two products around this chip, the RF200 and the SM200. While it may not sound appealing initially, it is very nice.
You can upload code over the air. The code you program the nodes is python. There are nice features such as rpc calls that make it a very flexible system.
If nothing else, check them out as an improved xbee replacement.

Member69804 | June 24, 2011 at 6:03 PMComment Rating1
I have managed to make the SparkFun demo board work with the Synapse Wireless.
I ended up purchasing the license for the bootloader hex which was suppose to work on these boards,  but they did not.
I ended up using the hex file from Synapse RF200 board (RF200 uses Atmega128RFA1)and then I would change the MAC address
so the Sparkfun board would have its own unique MAC in the network.



Dresden DeRFmega128




  • For pluggable modules use receptables: SAMTEC “SLM-123-01-L-S” with pitch 1.27mm
  • For solderable modules smd pads 1x1mm pitch 1.27mm



Pin assignment of deRFmega128-22A00 / 22A02 / 22C00 / 22C02
Pin
 μC-Port
 Pin
 μC-Port
1
 VCC
 24
 VCC
2
 DGND
 25
 DGND
3
 AREF
 26
 PE0/RXD0/PCINT8
4
 PG1/DI1
 27
 PD2/RXD1/INT2
5
 RSTN
 28
 PE1/TXD0
6
 PG2
 29
 PD6/T1
7
 PD0/SCL/INT0
 30
 PE2/XCK0/AIN0
8
 PG5/OC0B
 31
 PE3/OC3A/AIN1
9
 PD1/SDA/INT1
 32
 PD4/ICP1
10
 PD3/TXD1/INT3
 33
 PE4/OC3B/INT4
11
 PD7/T0
 34
 PF0/ADC0
12
 PD5/XCK1
 35
 PE5/OC3C/INT5
13
 PB1/SCK/PCINT1
 36
 PF1/ADC1
14
 CLKI
 37
 PE6/T3/INT6
15
 PB2/MOSI/PCINT2/PDI
 38
 PF4/ADC4/TCK
16
 PB0/SSN/PCINT0
 39
 PE7/ICP3/CLKO/INT7
17
 PB3/MISO/PCINT3/PDO
 40
 PF5/ADC5/TMS
18
 PB6/OC1B/PCINT6
 41
 PF2/ADC2
19
 PB4/OC2/PCINT4
 42
 PF6/ADC6/TDO
20
 PB7/OC0A/OC1C/PCINT7
 43
 RSTON
21
 PB5/OC1A/PCINT5
 44
 PF7/ADC7/TDI
22
 DGND
 45
 DGND
23
 DGND
 46
 DGND




Adaptive Network Solutions ANY2400

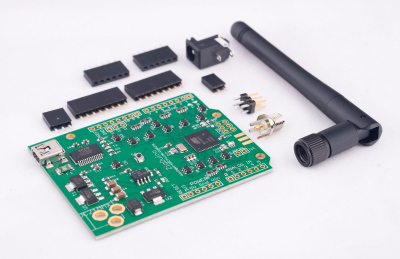

Zigduino


------->BTW, I’ve put up a contiki platform for Zigduino at github-wiki<--------Just<---- read<---- everything <--------
But read again THIS!


Also

  • Available Eagle Schematic and PCB cad files
  • It is the biggest available Arduino
  • Atmel bitcloud




ZigBit






STM32W108C8


32-bit ARM® Cortex™-M3 processor
2.4 GHz IEEE 802.15.4 transceiver & lower MAC
8-Kbyte RAM and 64-Kbyte Flash memory
AES128 encryption accelerator
Flexible ADC, SPI/UART/I2C serial communications, and general-purpose timers
24 highly configurable GPIOs with Schmit trigger inputs





MSB430

MSB430.png Freie Universitat Berlin Modular Sensor Board 430 with MSP430F1611, CC1020


Kmote


BOOKS



Synopsis

Most used platform for Contiki is the combination of MSP430F1611 TI low power CPU + CC2430 TI 2.4GHz 802.15.4 RF chip. It is the best choice for minimum effort Contiki or TinyOS nodes

Using above combination is the easiest way to go with Contiki as it is the most tested and is the 'official' chipset.
MSP430 family is very friendly to work with and has the best Low-Power characteristics than any other CPU family.
CC2430 is used by the open source Contiki and TinyOS more than other RF-chips. But there is not a low cost board available.
The MSP430 + CC2430 available boards are also expensive, starting at $85


ATmega128RFA1 CPU+RF 2.4GHz 802.15.4 chip seems to be the best choice for a WSN platform (August 2011). The technical characteristics are very good.

Large Flash, RAM,EEPROM (128K,16K,2K)
RF section has one of the best [reception-transmittion total gain]
RF section is already used in the open source WSN-OS as it is the same with the Atmel RF chip RF230
Commercial RF modules exist already at competitive pricing
OpenHardware projects already exist
Contiki port exists
Atmel proprietary Zigbee stacks
SYNAPSE ATmega128RFA1 based boards are the best engineered board regarding hardware, RF performance and Software.
It is possible to use Contiki Software to Synapse ATmega128RFA1 boards (or any other ATmega128RFA1 board)
It is already tested to use Synapse .HEX to other ATmega128RFA1 boards (Sparkfun board)
Dresden has very good quality ATmega128RFA1 boards with all RF-approvals
Sparkfun and Zigduino board are openhardware so can help in understanding and probably design a new board
Atmel has good documentation and reference designs on how to design a ATmega128RFA1 board
Synapse, Dresden, Sparkfun, Zigduino, Our-own design, can use all the same Software commercial or open-source
